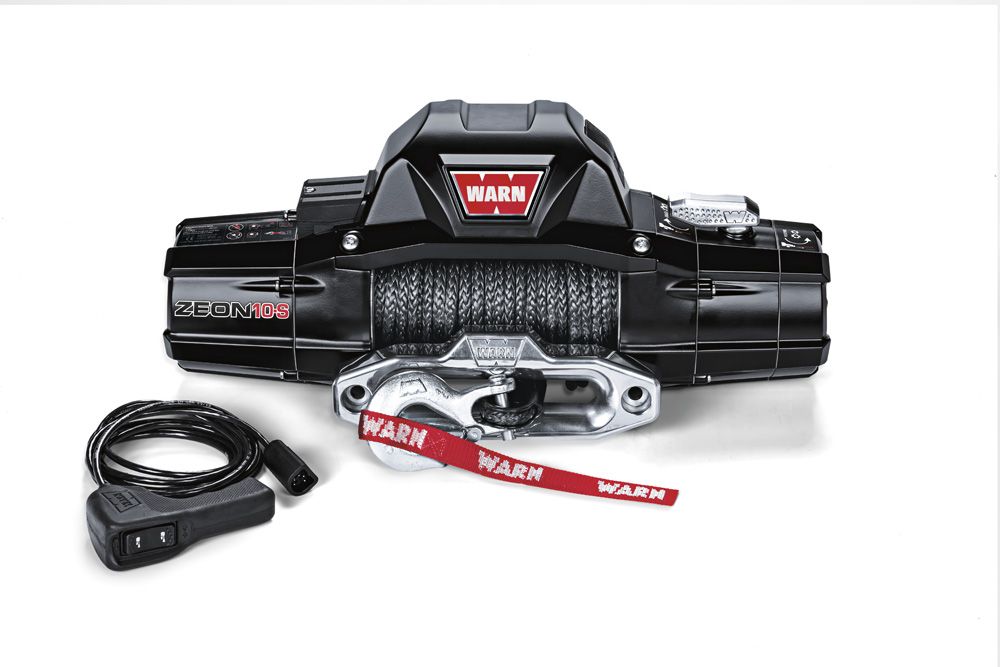

Warn Zeon 10 CE With Synthetic Rope

Warn Zeon 10 CE With Synthetic Rope
Zoom  Zoom
View Video  View Video
Our Price:  £1,436.70
List Price:  £1,690.23
Saving Of:  £253.53 (15%)
(Inc. 20% VAT)(£1,197.25 Exc. VAT)

Model:  WAR89680
Part Number:  89680
Brand:  Warn

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
  • 10,000 lb. (4536 kg) single-line pulling capacity.
  • Includes 30.5m of 9.5mm WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a matte aluminum hawse fairlead
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
  • Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)


Specifications:
  • Rated line pull: 10,000 lbs. (4536 kg) single-line
  • Motor: 12V DC, series wound
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12' (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone
  • Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
  • Weight (kit shipping): 75 lbs. (34 kg)
  • Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
  • Fairlead: Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Finish: Satin-black powder coat

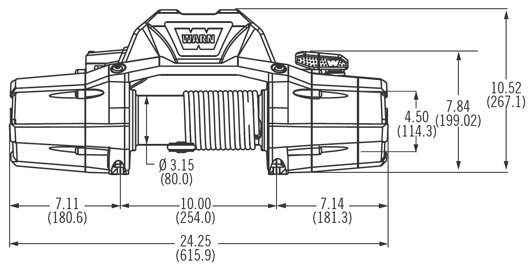

Winch Dimensions:





  • Integrated configuration: 24.25" L x 7.15" D x 10.52" H (615.9mm L x 181.6mm D x 267.1mm H)
  • Low-profile configuration: 24.25" L x 7.15" D x 7.84" H (615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern:
  • 10.0" x 4.5" (254mm x 114.3mm)
